oposa5e_sp

Mid-range Agilex 5 SOM

Order an evaluation kit

specifications

Agilex 5E processor

  • Dual core Cortex™-A76 @ 1,4GHz
  • Dual core Cortex™-A55 @ 1,25GHz

RAM

  • LPDDR4 : 1 to 4Gbytes (@ 3,733 Mbps; HPS)
  • LPDDR4 : 0 to 4Gbytes (@ 2,667 Mbps; FPGA)

Storage

  • eMMC 8bits: 8 to 64Gbytes

FPGA / Fabric

  • HVIO : max 120
  • LVDS : max 42 pairs
  • GTS TX : max 12 pairs
  • GTS RX: max 12 pairs
  • JTAG : max 4
  • PCIe 4.0
  • 10 GbE hard IP


  • 138k to 656k LE
  • 376 to 1692 18x18 multipliers
  • 5 to 22 TOPs (INT8)
  • 7 to 31Mbits embedded RAM

Peripherals(2)

  • UART: max 1 (reserved for debug)
  • I2C: max 1
  • GPIO: max 2
  • JTAG

Transceivers

  • 1 Ethernet PHY (10/100/1000 Mbits autoMDX)
  • 1 USB 2.0 PHY

Power supply

  • 5Vdc to 12Vdc +/- 5% @ 6Amax

Usage conditions

  • Temperature: 0°C..+50°C by default (passive cooling recommanded depending on your application); -20°C..+60°C on demand(1)

Mechanical

  • Dimensions: 78,6 x 78,6 mm
  • Connectors: 4x 10147614-121406LF Amphenol

RoHS/REACH

Yes

Embedded operating system

  • Linux 5.10 or upper (Buildroot or Debian rootfs)
  • Bare-metal (no OS)(1)


This SOM is delivered with U-Boot and Linux pre-installed



(1)on demand for volumes

(2)On HPS

evaluation kit

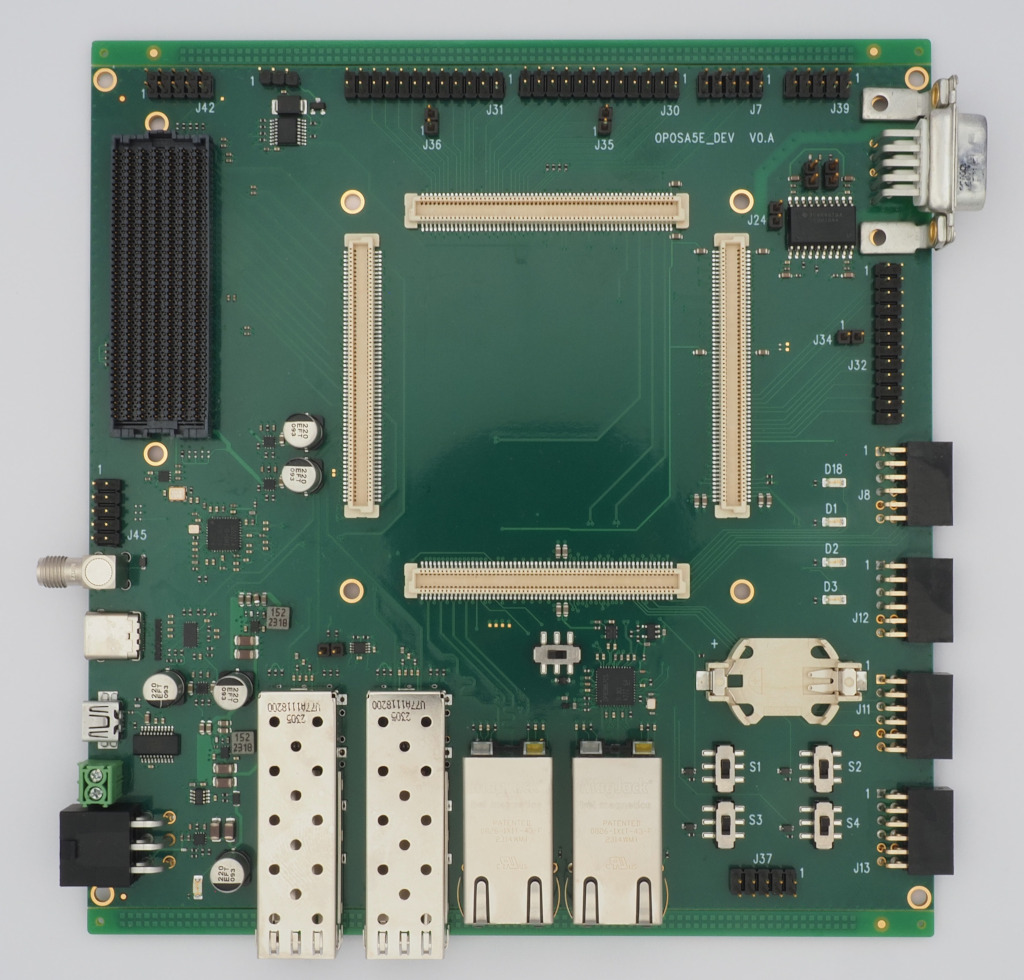

image oposa5esp_dev

Presentation

The OPOSA5E_SP_Dev is the ideal development platform to prototype your product based on the OPOSA5E_SP module.

You have access to all our SOM functionalities.

All Linux drivers needed to drive the on board peripherals are available in Armadeus public BSP. Development is eased and does not require supplemental debug hardware.

Functionalities

  • Measurement of input voltage and current consumption
  • 4x PMODs
  • 4x user buttons
  • 4x user LEDs
  • 1x isolated CAN bus with 9pts DSUB connector
  • 1x fan controller by I2C bus
  • 1x USB3 superspeed/USB2 with USB-C connector
  • 2x Ethernet ports 10/100/1000Mbits
  • 2x SFP (max 2.5G)
  • JTAG + debug (USB)
  • FMC+
  • Programmable clock signal generator

Connectors

  • FMC+
  • DSUB9 connector for CAN
  • 3pts connector for fan
  • 1x USB-C
  • 1x USB mini for debug
  • 2x SFP
  • 2x RJ45
  • 2x power supply connectors

Included

  • JTAG probe

Power supply

  • Input supply 12Vdc

RoHS

Yes

Price

Coming soon, -€ without taxes, with SOM and without SFP



Order

Resources

Datasheets

Datasheets of OPOSA5E_SP in PDF format

Datasheets of the OPOSA5E_SP_DEV in PDF format, coming soon...

Schematics

Schematics of the OPOSA5E_SP_Dev in PDF format, coming soon...
